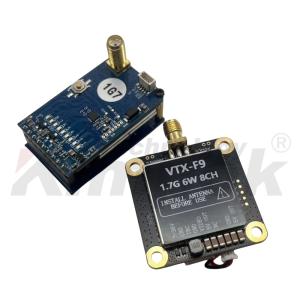

1.7G 6W Wireless Video Transmitter and Receiver 8CH Support IRC Tramp 1.7G VTX VRX
Video Transmitter Parameter:
I.Main Features
l Channels 8CH;
l Control Protocol: IRC Tramp, supports OSD tuning;
l Allows users to define custom frequencies within 1680-1960MHz using IRC Tramp tuning software;
l Power: PIT / 25mW / 800mW / 6000mW;
l Efficient DC/DC power input: 7-36V;
l Supports 5V voltage output;
l Supports installation on flight tower (30.5*30.5MM / M3 mounts)
II.Product Specifications
l Transmitter (Air Unit):
l Input Voltage: 7-36V DC (2-6S)
l Output Voltage: 5V/0.5A
l Weight: 21.5g (excluding antenna)
l Dimensions (L*W*H): 37mm*46mm*17.5mm (including SMA connector and fan)
l Video Format: PAL/NTSC
l Number of Channels: 8
lChannel Selection: Frequency adjustment button (short press to switch)
lTransmission Frequency: 8CH (see frequency table)
l Power Adjustment: Power button (short press to switch)
l Power Levels: 3 levels - 25mW / 800mW / 6000mW
lAntenna Connector: SMA (external thread, internal hole)
l Modulation Type: FM
Video Receiver Parameter:
I.Main Features
lChannels 8CH;
lSupport FatShark,Skyzone and other glasses VR headset display straight plug and analog
display and other connection use;
lHigh-sensitivity reception-97 dBm;
lEfficient DC/DC power input: 7-36V;
lSupport 5V voltage output;
lShort click switch channel;
II.Product Parameter
lReceiver (ground end):
lInput voltage:7-36V DC(2-6S)
lOutput voltage:5V/0.5A
lVideo system:PAL/NTSC
lNumber of channels:8 channels
lChannel selection:Short click switch frequency
lReceiving frequency: 1680-1960MHz
lSensitivity:-97 dBm(MAX)
lAntenna interface:SMA(outer screw inner hole)
lModulation type:FM
Frequency Table
| CH1
1680 | CH2
1720 | CH3
1760 | CH4
1800 | CH5
1840 | CH6
1880 | CH7
1920 | CH8
1960 |
